Number:

03-01

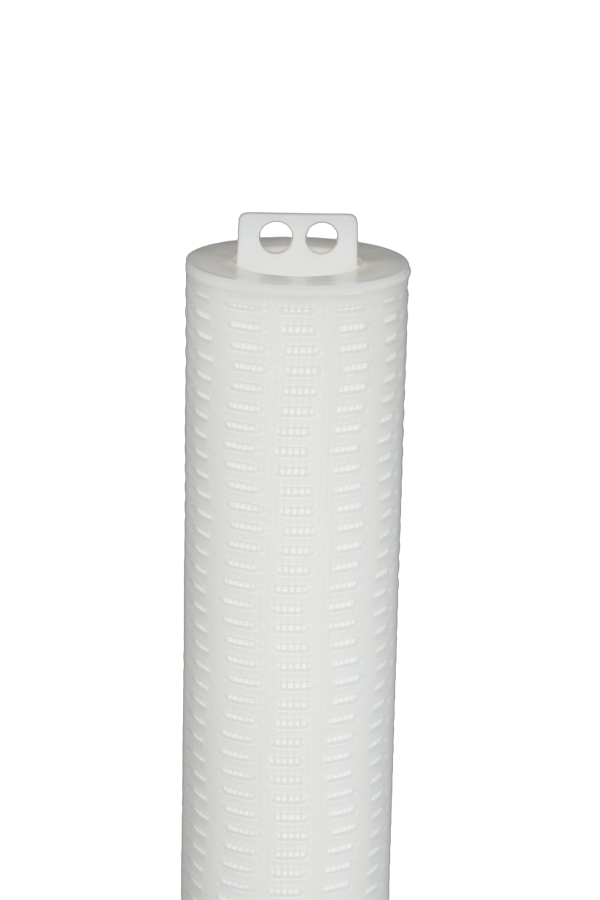

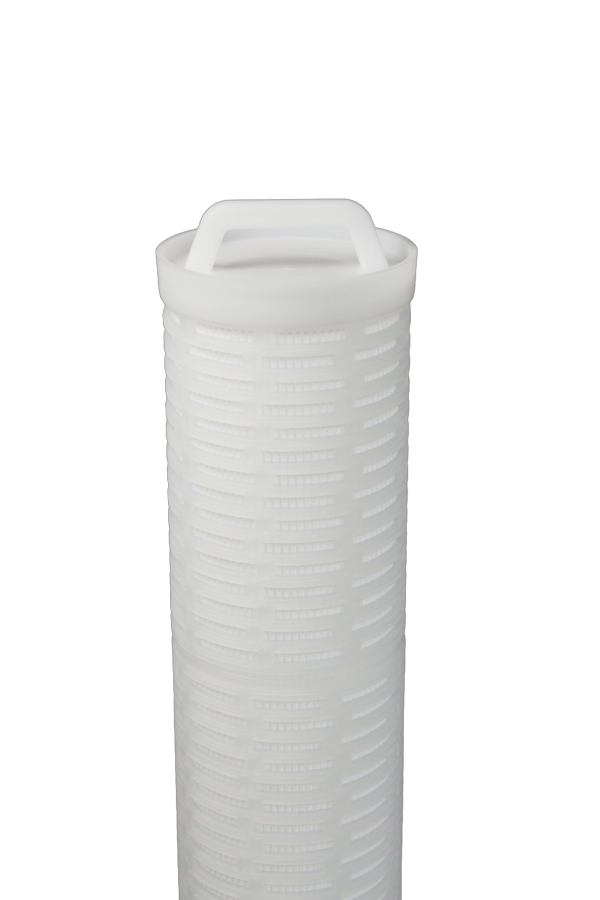

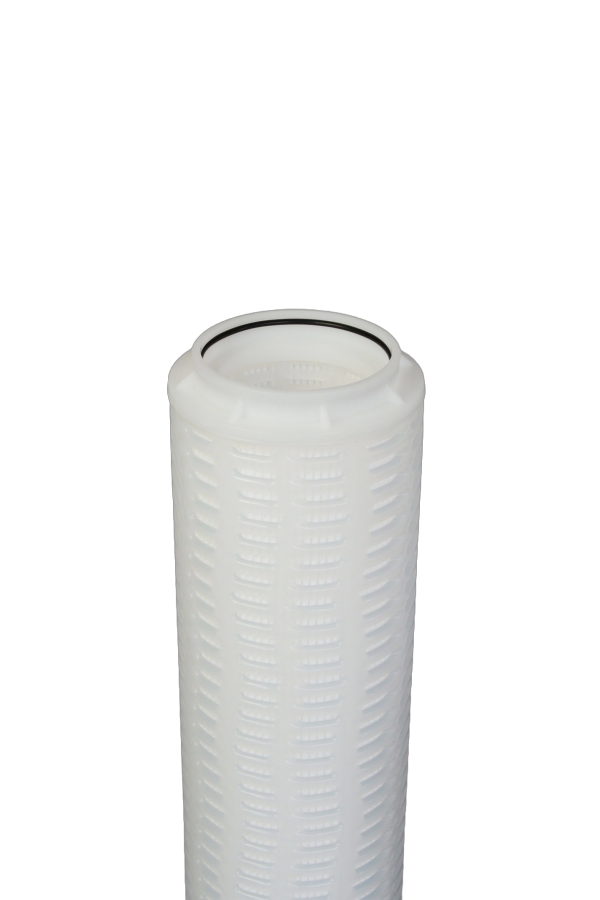

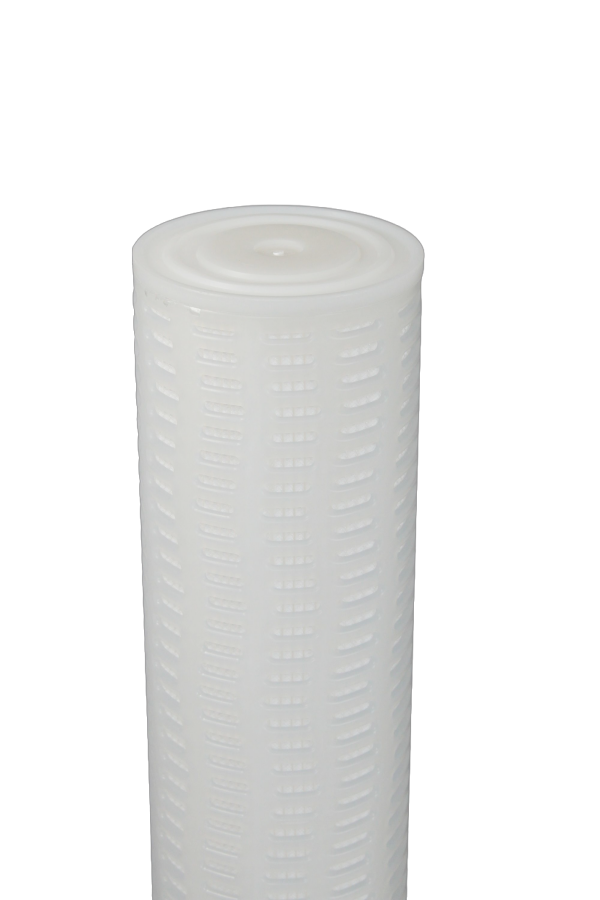

High Flow Filter Cartridges

Model Number:

The HF series high-flow filter cartridges are composed of 5 or more layers of ultra-fine fiber membranes and feature a high-density pleated design, which enables high-precision and stable filtration efficiency while providing a high dirt-holding capacity. The filtration area of a single filter cartridge can exceed 8.4㎡. The HF series high-flow filter cartridges are widely used in various applications with high dirt loads and high filtration accuracy. They can reduce the number of filter cartridges required, allowing for a more compact filter design to meet higher processing capacity, higher dirt-holding capacity, longer service life, and lower operating costs. SoluGET's HF series high-flow filter cartridges offer a variety of filter materials to choose from, including polypropylene (PP), polyester (PET), and glass fiber (GF), to meet different application requirements.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

High Flow Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

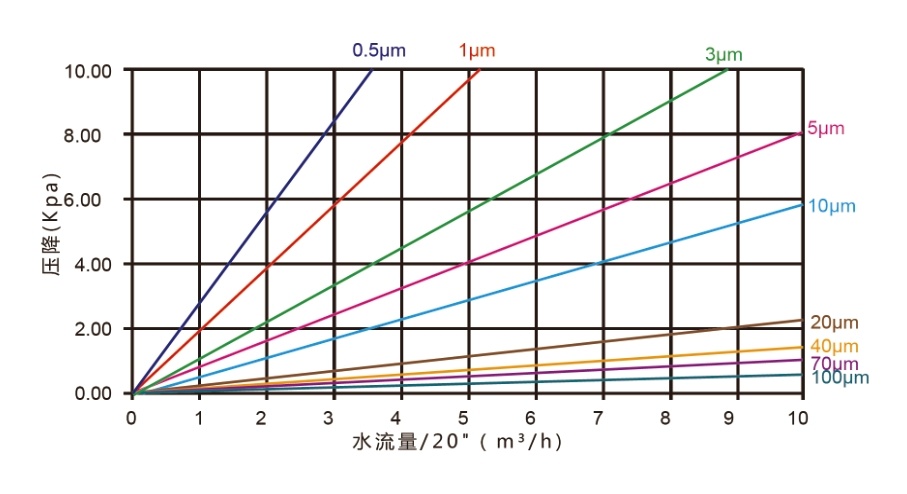

Performance

Features and Advantages

●Utilizes ≥5 layers of ultrafine fiber membrane, ≥99.9%removal efficiency

●Gradient pore structure, formed by gradually changing fiber diameters,provides larger dirt holding capacity

●Deep pleating design ensures large filtration area, extended service life

●Inner and outer support structure withstands higher positive and reversepressure different ials

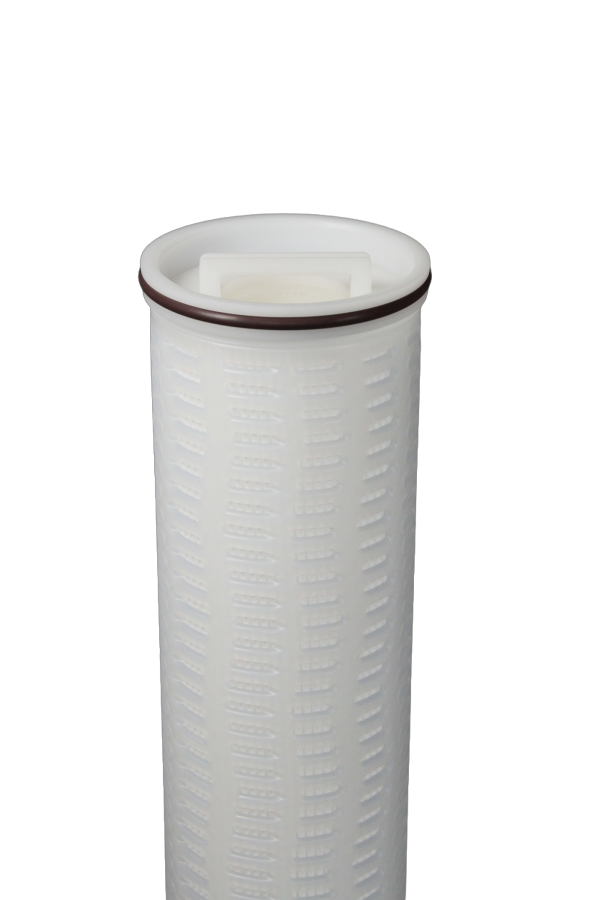

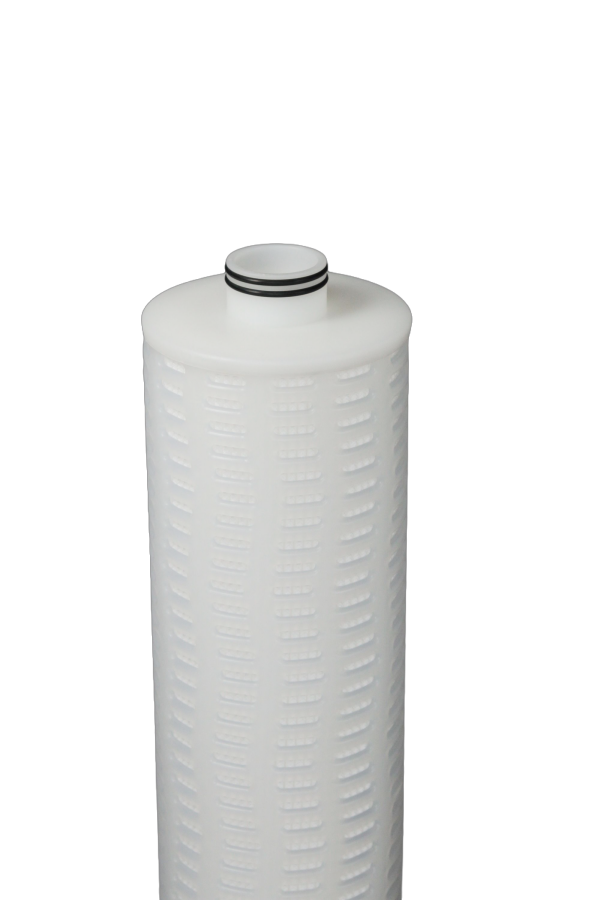

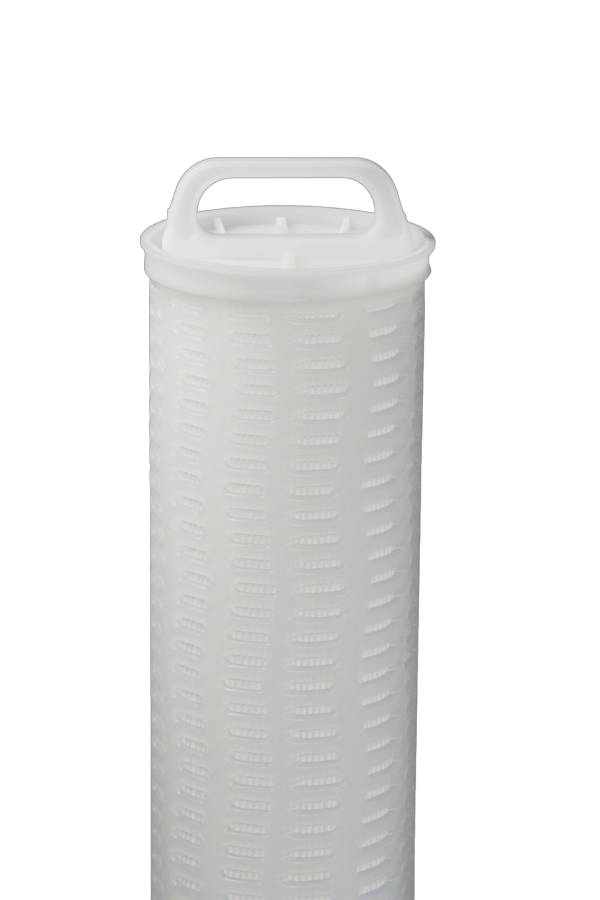

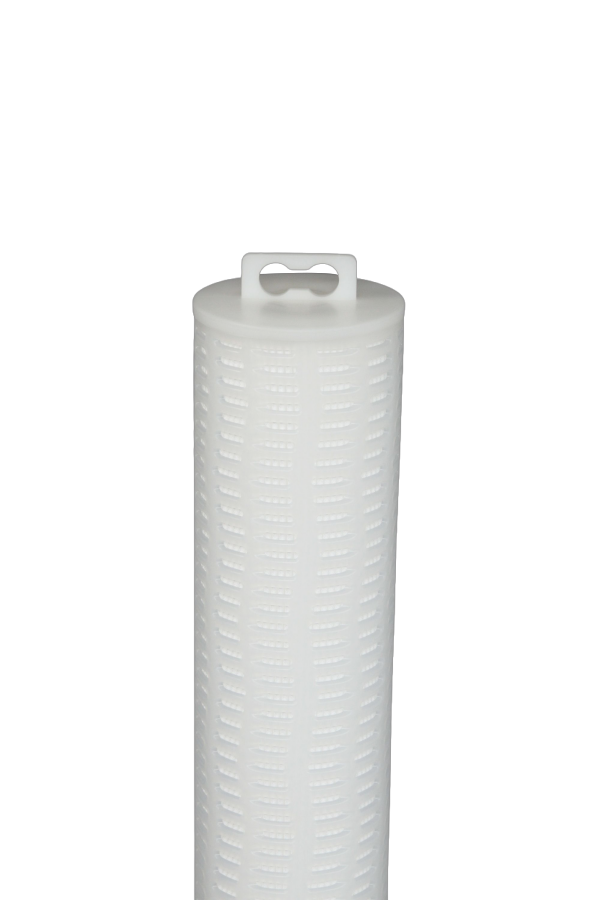

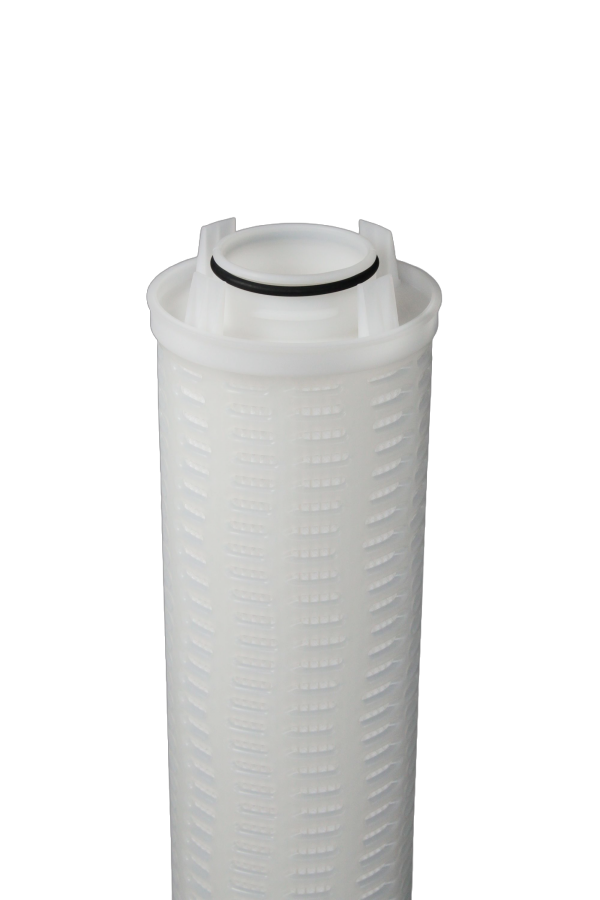

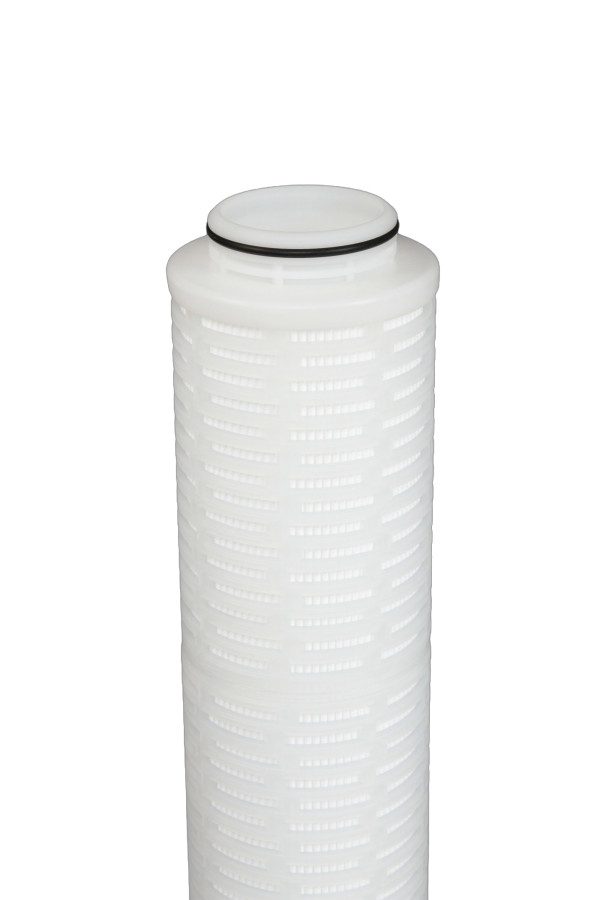

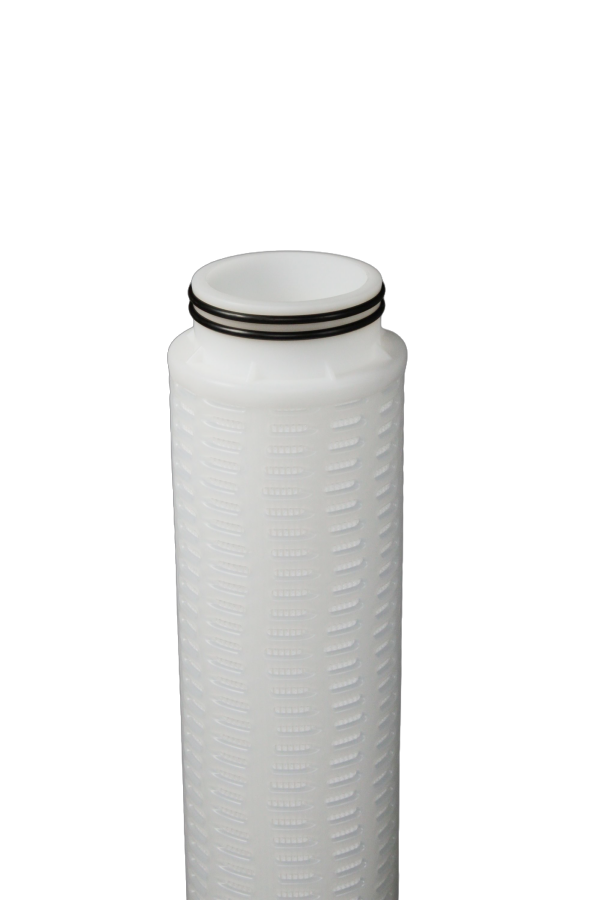

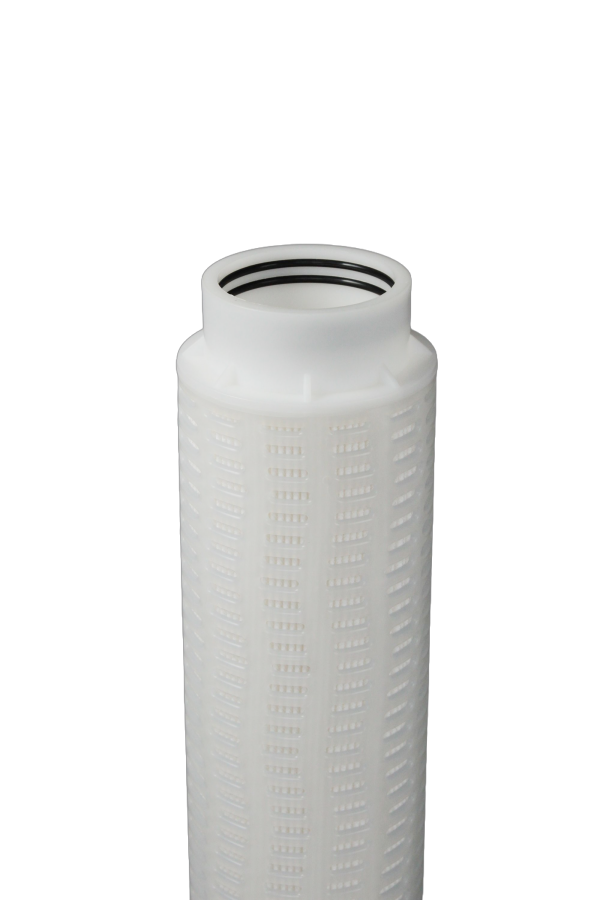

●Equipped with O-ring seal and end cap handle design for convenient andquick cartridge replacement

●Wide chemical compatibility for various operating conditions

Specifications

Material Structure

Model Number	HFPP	HGPE	HFGF
Medium	PP	PET	GF
Core, cage, and end caps	PP	PET	PET

Working Characteristics

Model Number

HFPP

HFPBT

HFGF

Max Service Temperature

82 ℃

120℃

　　Max Working Pressure

Differential

0.38MPa/21℃
0.24MPa/80℃

Filter Cartridge Selection Chart

Model Number	Medium	Removal Ratings	Length	Connector	O-ring Options
HF	Polypropylene	05 = 0.5 μm	20 = 20 inch	Blank	S = Silicone
	Polyethylene	1 = 1 μm	40 = 40 inch	M	V = Fluoroelastomer
	Glass Fiber	3 = 3 μm	60 = 60 inch	P	E = EPDM
		5 = 5 μm		Custom	N = NBR
		10 = 10 μm			T = FEP Encapsulated FKM
		20 = 20 μm
		40 = 40 μm
		70 = 70 μm
		100 = 100 μm
