Number:

01-01

Absolute PP Pleated Filter Cartridges

Model Number:

APP

APP series filter cartridges adopt pleated polypropylene as filter medium, filter membranes take unique solidification technology that fibers are solidified by thermal melting welding to prevent fiber shredding. Using the ultra-fine inner filter membrane design to ensure the absolute filtration accuracy of the filter element, filtration efficiency can reach 99.98%. APP series filter cartridges are pure polypropylene structure without any binder. SoluGET uses own unique non-contact thermal fusion welding technology to ensure welding strength while avoiding contact contamination caused by traditional welding techniques.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

Pleated Depth Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

Performance

Features and Advantages

Absolute filtering accuracy

Large filtration area and high throughput

A variety of removal ratings can be selected

Non-contact hot melt welding for high cleanliness

Specifications

Material Structure

Medium: PP

Support and drainage: PP

Core, cage, and end caps: PP

Working Characteristics

Max Operating Temperature: 82 ℃

Max Differential Pressure: 0.38MPa/21 ℃

0.24MPa/80 ℃

Filter Cartridge Selection Chart

Model Number	Removal Ratings	Length	Connector	O-ring Options
APP	01 = 0.1 μm	5 = 5 inch	DOE = double open end	S = Silicone
	02 = 0.2 μm	10 = 10 inch	C3 = 222+flat closed end	V = Viton
	045 = 0.45 μm	20 = 20 inch	C8 = 222+fin end	E = EPDM
	1 = 1 μm	30 = 30 inch	C2 = 226+flat closed end	N = NBR
	3 = 3 μm	40 = 40 inch	C7 = 226+fin end	T = FEP Encapsulated Viton
	5 = 5 μm
	10 = 10 μm
	20 = 20 μm
	50 = 50 μm

Performance

PP Pleated Filter Cartridge

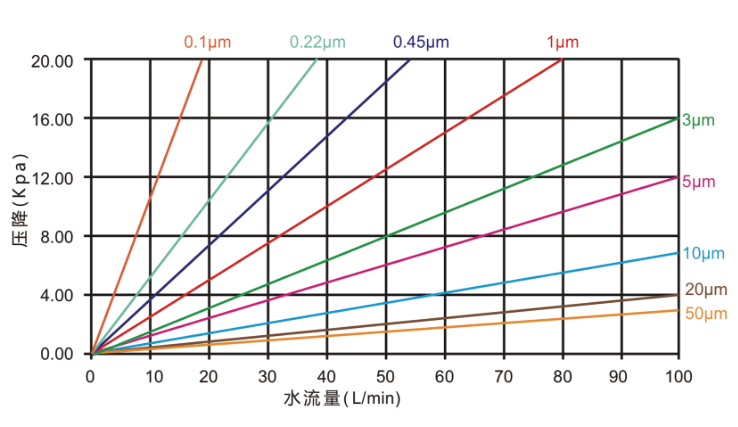

APP filter series flow pressure difference curve

Absolute PP Pleated Filter Cartridges are essential components designed to meet the demanding filtration needs across various industries. These cartridges are crafted using high-quality polypropylene (PP) media, ensuring exceptional durability and efficiency in removing contaminants from liquids and gases.
