Cost-Effective PP Pleated Filter Cartridges

对比

Number:

01-02

Cost-Effective PP Pleated Filter Cartridges

Model Number:

NPP

NPP series filter cartridges adopt ultra-fine high-performance pleated polypropylene as filter media. With a rich channel structure and high flow, they can quickly and effectively improve the purity of the liquid. NPP series filter elements have a pure polypropylene structure without any binders. The filter membranes use a unique solidification technology where fibers are solidified by thermal melting welding to prevent shredding. SoluGET utilizes its own unique non-contact thermal fusion welding technology to ensure welding strength between the end cap and the body, while avoiding contact contamination caused by traditional welding techniques. At the same time, NPP filter cartridges take into account both performance and price, making them cost-effective and the best choice for pre-filtration and coarse filtration.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

Pleated Depth Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

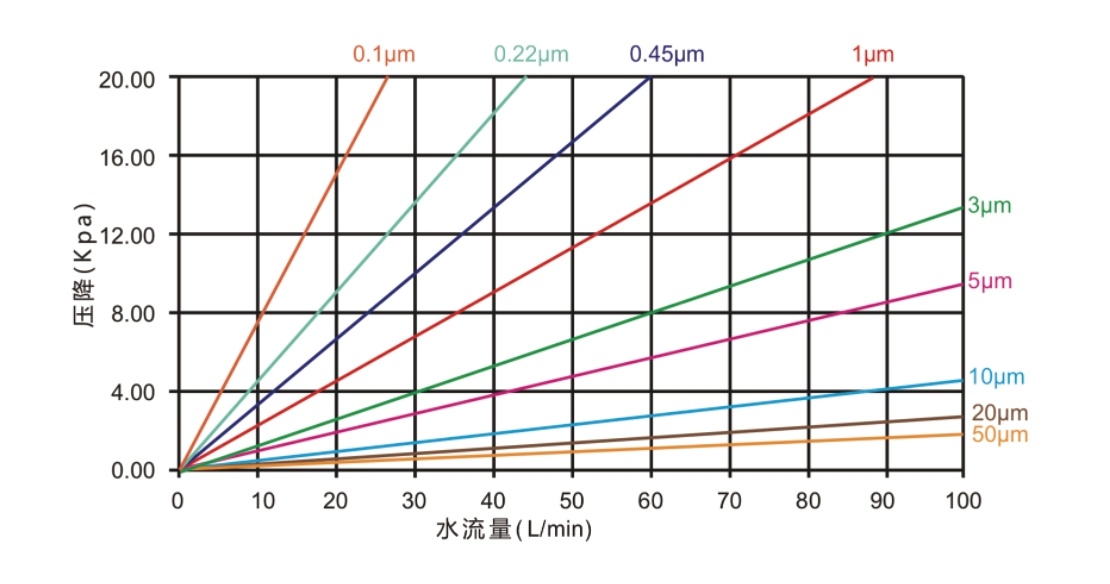

Performance

Features and Advantages

Large filtration area and high throughput

A variety of filtering precision can be selected

Non-contact hot melt welding, high cleanliness

High cost performance

Specifications

Material Structure

Medium: PP

Support and drainage: PP

Core, cage, and end caps: PP

Working Characteristics

Max Operating Temperature: 82 ℃

Max Differential Pressure: 0.38MPa/21 ℃

0.24MPa/80 ℃

Filter Cartridge Selection Chart

Model Number	Removal Ratings	Length	Connector	O-ring Options
NPP	01 = 0.1 μm	5 = 5 inch	DOE = double open end	S = Silicone
	02 = 0.2 μm	10 = 10 inch	C3 = 222+flat closed end	V = Viton
	045 = 0.45 μm	20 = 20 inch	C8 = 222+fin end	E = EPDM
	1 = 1 μm	30 = 30 inch	C2 = 226+flat closed end	N = NBR
	3 = 3 μm	40 = 40 inch	C7 = 226+fin end	T = FEP Encapsulated Viton
	5 = 5 μm
	10 = 10 μm
	20 = 20 μm
	50 = 50 μm
