Cost-Effective Fluoropolymer Filter Cartridges

Model Number:

ATFV/ATFC

The ATFV/ATFC series filter cartridges adopted pleated polytetrafluoroethylen (PTFE) membranes. The core, cage and end caps are made of fluoropolymer material, providing excellent resistance to organic and inorganic chemical corrosion. They are particularly suitable for filtering electronic-grade strong acids, strong alkalis, and strong organic solvents.The filter cartridges pass 100% integrity testing to ensure reliable particle and bacteria removal performance. The ATFVH/ATFCH series filter cartridges are made with hydrophilically modified pleated polytetrafluoroethylene (PTFE) membranes. They can be directly used in polar solutions without the need for pre-wetting treatment, reducing operation time and maintenance costs.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

Membrane Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

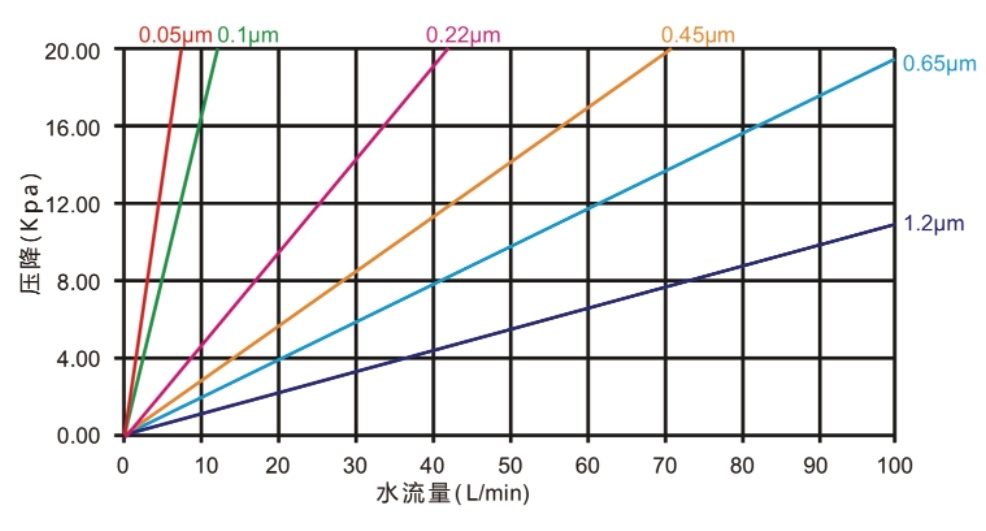

Performance

Features and Advantages

Fluoropolymer structure

Optional hydrophilic filter material

Suitable for strong acid and alkali filtration

100% ex-factory integrity testing

Specifications

Material Structure

Model Number: ATFV ATFC

Medium: PTFE

Core, cage, and end caps: PVDF ECTFE

Working Characteristics

Max Operating Temperature: 100 ℃

Max Operating Pressure Differential: 0.40MPa/21 ℃

0.24MPa/80 ℃

Filter Cartridge Selection Chart

Model Number	Removal Ratings	Length	Connector	O-ring Options
ATFV	002 = 0.02 μm	5 = 5 inch	DOE = double open end	S = Silicone
ATFVH (hydrophilic)	005 = 0.05 μm	10 = 10 inch	C3 = 222+flat closed end	V = Viton
ATFC	01 = 0.1 μm	20 = 20 inch	C8 = 222+fin end	E = EPDM
ATFCH (hydrophilic)	022 = 0.22 μm	30 = 30 inch	C2 = 226+flat closed end	N = NBR
	045 = 0.45 μm	40 = 40 inch	C7 = 226+fin end	T = FEP Encapsulated Viton
	1 = 1 μm
	5 = 5 μm
	10 = 10 μm
