PTFE Membrane Filter Cartridges
Model Number:
ATF/ATFH
The ATF series filter cartridges are folded using polytetrafluoroethylene (PTFE) membrane, which provides excellent resistance to organic and inorganic chemical corrosion and inherent hydrophobicity. They can be used for particle filtration and sterilization in strong solvents, corrosive liquids, and oxidizing liquids. The filter elements pass a 100% integrity test to ensure reliable particle filtration and sterilization performance. The ATF series filter cartridges are particularly suitable for gas filtration, such as nitrogen and air. The gas filtration precision can be as low as 3nm, with high gas flux and low pressure drop. For specific application selection, please consult SoluGET engineers. The ATFH series filter cartridges use hydrophilically modified PTFE membrane, giving them hydrophilic characteristics. They can be directly used in polar solvents without pre-wetting.
Stock surplus
Classification:
隐藏域元素占位
Features and Advantages
Excellent chemical compatibility
Optional hydrophilic filter medium
High flux, low pressure loss, long sevice life
Wide range of filtration accuracy
Can be applied to nitrogen, air and other gas filtration
100% ex-factory integrity testing
Specifications
Material Structure
Medium: PTFE/Hydrophilic PTFE
Support and drainage: PP
Core, cage, and end caps: PP
Working Characteristics
Max Operating Temperature: 82 ℃
Max Operating Pressure Differential: 0.38MPa/21 ℃
0.24MPa/80 ℃
Filter Cartridge Selection Chart
| Model Number | Removal Ratings | Length | Connector |
O-ring Options |
| ATF | 002 = 0.02 μm | 5 = 5 inch | DOE = double open end |
S = Silicone |
| ATFH | 005 = 0.05 μm | 10 = 10 inch |
C3 = 222+flat closed end |
V = Viton |
|
GATF (gas) |
01 = 0.1 μm | 20 = 20 inch | C8 = 222+fin end | E = EPDM |
| 022 = 0.22 μm | 30 = 30 inch | C2 = 226+flat closed end |
N = NBR |
|
|
|
045 = 0.45 μm | 40 = 40 inch | C7 = 226+fin end | T = FEP Encapsulated Viton |
|
|
065 = 0.65 μm | |||
| 1 = 1 μm |
|
|||
|
|
0003=0.003 μm (gas) | |||
|
|
001=0.01 μm (gas) |
Performance

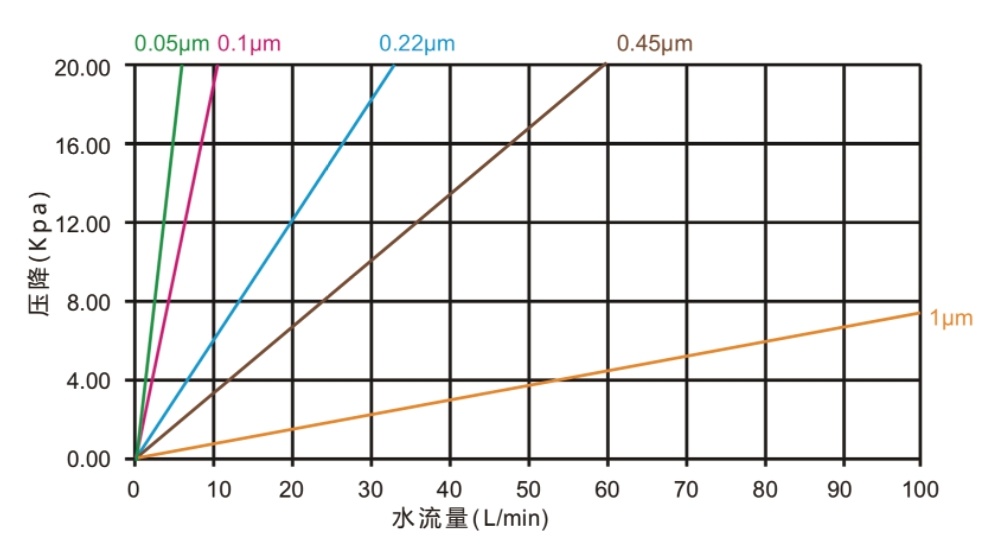

Flow differential pressure curve of ATF/ATFH filter element series
PTFE Membrane Filter Cartridges are exceptional filtration products. These cartridges are engineered with precision using high-quality PTFE (Polytetrafluoroethylene) membranes. The PTFE membrane offers extraordinary properties such as excellent chemical resistance, high temperature tolerance, and low friction coefficient. It is capable of effectively filtering out a wide range of contaminants, including fine particles, bacteria, and other impurities. PTFE Membrane Filter Cartridges find extensive applications in various industries like chemical processing, pharmaceuticals, food and beverage, and aerospace.
