High Dirt Holding Capacity PP Filter Cartridges

Model Number:

HCPP

HCPP Series filter cartridges adopt pure pleated polypropylene as filter media. Unlike the traditional pleated polypropylene filter, the HCPP series filters have a new membrane design concept: Gradual change in fiber diameter, forming a tapered pore structure from rough to fine(upstream to downstream). This gradual pore size structure can intercept more particles inside the filter medium step by step, which fundamentally enhances the dirt-holding capacity of the cartridge and improves the service life of the cartridge.Compared with conventional surface type cartridge of the same size, HCPP series cartridge has 4 times longer service life. HCPP series cartridge is pure polypropylene structure without any binder component. The polypropylene filter membrane adopts a unique curing technology, where the fiber and fiber ask to be cured by hot melt, ensuring a fixed pore structure and no fiber shedding. The cartridge end cap and the cartridge body adopt SoluGET's unique non-contact hot melt welding technology, which ensures the welding strength while avoiding contact contamination caused by traditional welding technology. Due to the deep structure design of HCPP, it is especially suitable for filtration of higher viscosity fluids.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

Pleated Depth Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

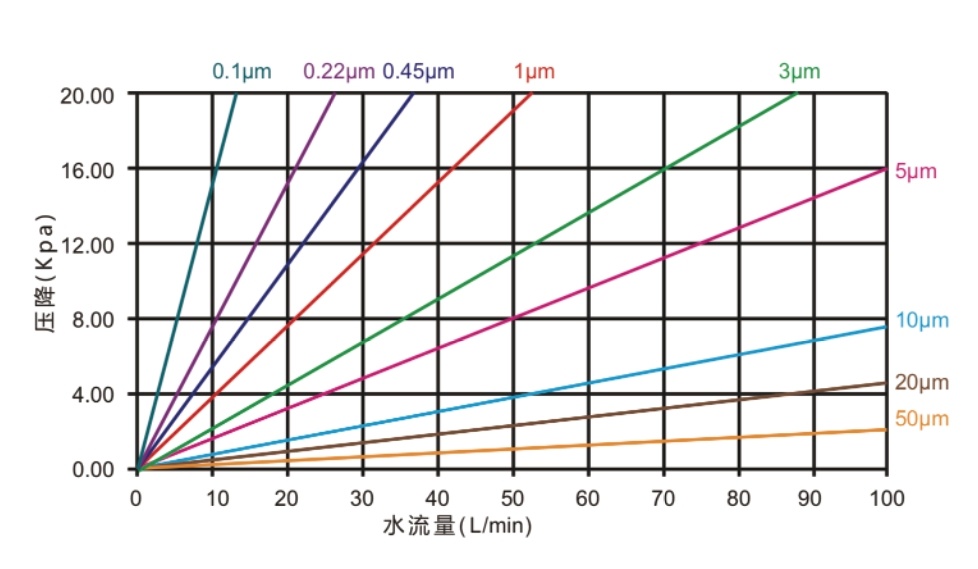

Performance

Features and Advantages

Gradient filter membrane design, high dirt holding capacity

Long service life

Particularly suitable for high viscosity fluid filtration

Specifications

Material Structure

Medium: PP

Support and drainage: PP

Core, cage, and end caps: PP

Working Characteristics

Max Operating Temperature: 82 ℃

Max Operating Pressure Differential: 0.38MPa/21 ℃

0.24MPa/80 ℃

Filter Cartridge Selection Chart

Model Number	Removal Ratings	Length	Connector	O-ring Options
HCPP	01 = 0.1 μm	5 = 5 inch	DOE = double open end	S = Silicone
	02 = 0.2 μm	10 = 10 inch	C3 = 222+flat closed end	V = Viton
	045 = 0.45 μm	20 = 20 inch	C8 = 222+fin end	E = EPDM
	1 = 1 μm	30 = 30 inch	C2 = 226+flat closed end	N = NBR
	3 = 3 μm	40 = 40 inch	C7 = 226+fin end	T = FEP Encapsulated Viton
	5 = 5 μm
	10 = 10 μm
	20 = 20 μm
	50 = 50 μm
