Number:

02-01

PES Membrane Filter Cartridges

Model Number:

APS

The APS series features hydrophilic asymmetric PES membranes, which are pleated to offer exceptional particle interception, boasting a filtration efficiency of up to 99.99%. The asymmetric membrane design enhances the filter cartridge's dirt-holding capacity, thus extending its service life. The PES membrane's inherent hydrophilicity makes it well-suited for filtering aqueous solutions without the need for pre-wetting. The APS series filter cartridge's core, cage, and end caps are crafted from pure polypropylene. SoluGET's proprietary non-contact thermal fusion welding technology is employed for joining the end caps to the cage, ensuring robust welding while preventing contamination associated with traditional welding methods. The production process of the cartridge avoids the use of binders or surfactants, ensuring no leaching concerns. Each APS series pleated filter cartridge undergoes 100% integrity testing to guarantee performance and reliability.

Quantity

Stock surplus

加入购物车

立即购买

Classification:

Membrane Filter Cartridges

Request for Quote

隐藏域元素占位

Overview

Features and Advantages

Specifications

Filter Cartridge Selection Chart

Performance

Features and Advantages

Hydrophilic filter membrane

Ultra-high filtration efficiency

Asymmetric membrane pore structure

100% integrity test

Specifications

Material structure

Medium: PES

Support and drainage: PP

Core, cage, and end caps: PP

Working characteristics

Max Operating Temperature: 82 ℃

Max Operating Pressure Differential: 0.38MPa/21 ℃

0.24MPa/80 ℃

Filter Cartridge Selection Chart

Model Number	Removal Ratings	Length	Connector	O-ring Options
APS	005 = 0.05 μm	5 = 5 inch	DOE = double open end	S = Silicone
	01 = 0.1 μm	10 = 10 inch	C3 = 222+flat closed end	V = Viton
	022 = 0.22 μm	20 = 20 inch	C8 = 222+fin end	E = EPDM
	045 = 0.45 μm	30 = 30 inch	C2 = 226 flat closed end	N = NBR
	065 = 0.65 μm	40 = 40 inch	C7 = 226+fin end	T = FEP Encapsulated Viton
	1 = 1 μm

Performance

Membrane Filter Cartridges

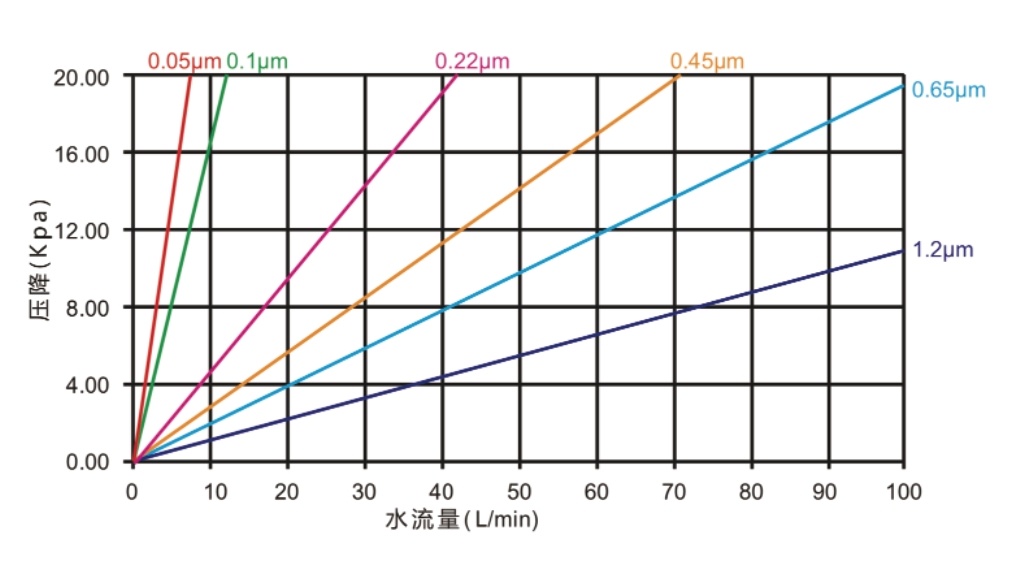

Flow Differential Pressure Curve of APS Filter Cartridge Series

PES Membrane Filter Cartridges offer excellent flow rates while maintaining high filtration quality. They can be easily installed and replaced, minimizing disruption to processes. Their compatibility with a wide range of fluids and operating conditions makes them versatile and suitable for diverse applications such as water treatment, chemical processing, and pharmaceutical manufacturing. With their reliable performance and ability to deliver clean and pure output, Membrane Filter Cartridges are an essential choice for achieving optimal filtration results.
