NY66 Membrane Filter Cartridges
Model Number:
ANY
The ANY series are made of imported hydrophilic nylon 66 membrane, folded into pleats for absolute precision and excellent performance. The high-purity polypropylene components are connected to the nylon 66 membrane using Soluget's unique non-contact thermal fusion welding technology, which provides higher structural strength and stable performance. The filter cartridge undergoes 100% integrity testing to ensure its complete reliability in particle removal and bacteria removal. It is particularly suitable for pre-filtration in antibiotic pharmaceutical processes, reducing bioburden, and sterile filtration.
Stock surplus
Classification:
隐藏域元素占位
Features and Advantages
Hydrophilic filter membrane
Low precipitation
100% Factory Integrity Test
Specifications
Material Structure
Medium: Nylon 66
Support and drainage: PP
Core, cage, and end caps: PP
Working Characteristics
Max Service Temperature: 82 ℃
Max Operating Pressure Differential: 0.38MPa/21 ℃
0.24MPa/80 ℃
Filter Cartridge Selection Chart
| Model Number | Removal Ratings | Length | Connector |
O-ring Options |
| ANY | 01 = 0.1 μm | 10 = 10 inch | DOE = double open end |
S = Silicone |
| 02 = 0.2 μm | 20 = 20 inch |
C3 = 222+flat closed end |
V = Viton | |
|
045 = 0.45 μm |
30 = 30 inch | C8 = 222+fin end | E = EPDM | |
| 1 = 1 μm | 40 = 40 inch | C2 = 226 flat closed end |
N = NBR |
|
|
|
C7 = 226+fin end | T = FEP Encapsulated Viton |
Performance

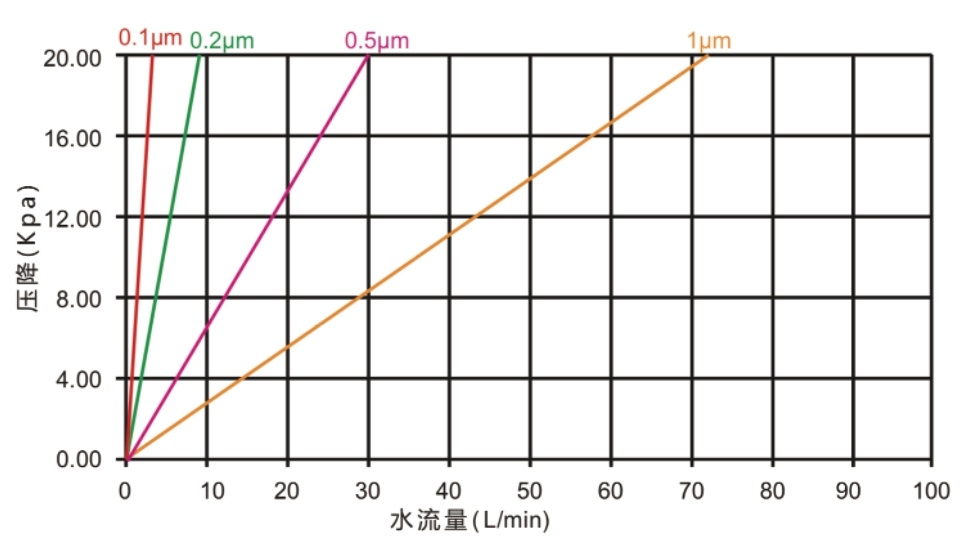

ANY filter series flow pressure difference curve
NY66 Membrane Filter Cartridges are truly remarkable products. These cartridges are crafted with precision using high-quality NY66 material, ensuring outstanding durability and performance. The membrane within them is highly efficient in filtering out a wide range of particles, contaminants, and impurities, providing clean and clear filtrate.NY66 Membrane Filter Cartridges offer reliable filtration, maintaining consistent quality output.
