PVDF Membrane Filter Cartridges
Model Number:
AVF/AVFH
AVF/AVFH series filter cartridges are made by pleating polyvinylidene fluoride (PVDF) filter membrane. The core, cage and end caps of the filter cartridge are all made of pure polypropylene material, without the addition of any adhesive components. The end caps and body of the filter cartridge are joined using SoluGET's unique non-contact thermal fusion welding technology, ensuring strong weld strength while avoiding contact contamination associated with traditional welding techniques. The filter cartridges pass 100% integrity testing, guaranteeing their reliable particle and bacteria removal performance. AVFH series filter cartridges are made by pleating hydrophilic modified polyvinylidene fluoride (PVDF) filter membrane, allowing them to be directly applied to polar solutions without the need for pre-wetting treatment, reducing operation time and maintenance costs.
Stock surplus
Classification:
隐藏域元素占位
Features and Advantages
Excellent chemical compatibility
High precision, low voltage loss, long service life
Suitable for strong acid and alkali filtration
Specifications
Material Structure
Model Number: AVF AVFH
Medium: PVDF Hydrophilic PVDF
Core, cage, and end caps: PP
Working Characteristics
Max Operating Temperature: 82 ℃
Max Operating Pressure Differential: 0.40MPa/21 ℃
0.24MPa/80 ℃
Filter Cartridge Selection Chart
| Model Number | Removal Ratings | Length | Connector |
O-ring Options |
| AVF | 01 = 0.1 μm | 5 = 5 inch | DOE = double open end |
S = Silicone |
| AVFH | 022 = 0.22 μm | 10 = 10 inch |
C3 = 222+flat closed end |
V = Viton |
|
|
045 = 0.45 μm | 20 = 20 inch | C8 = 222+fin end | E = EPDM |
| 065 = 0.65 μm | 30 = 30 inch | C2 = 226 flat closed end |
N = NBR |
|
|
|
1 = 1 μm | 40 = 40 inch | C7 = 226+fin end | T = FEP Encapsulated Viton |
|
|
5 = 5 μm |
Performance

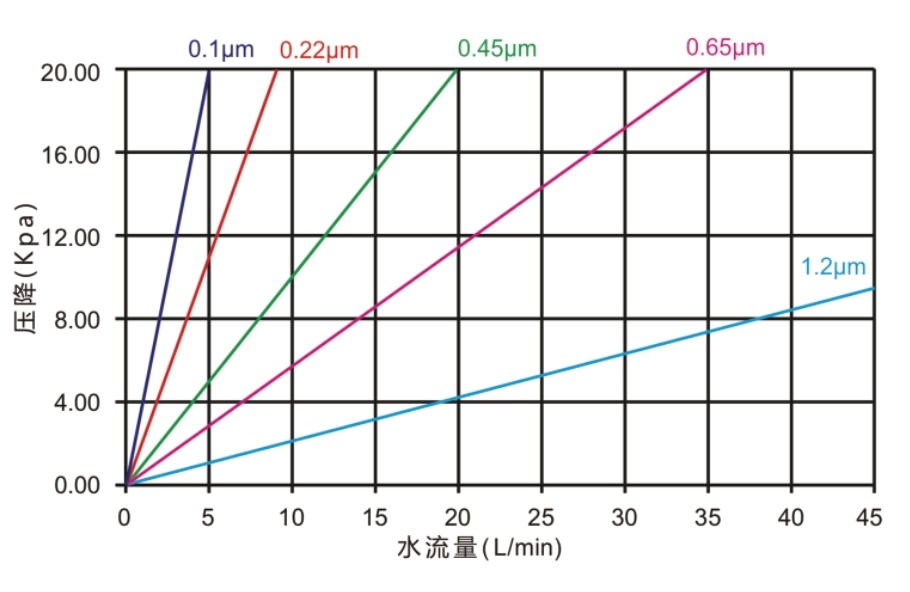

AVFH series flow pressure drop curve
PVDF Membrane Filter Cartridges are easy to install and replace, minimizing downtime. Their durability and reliable filtration capabilities make them an essential choice for achieving high-quality filtered output in different applications, helping to meet the strictest filtration requirements and ensuring smooth and efficient processes.
